300kg/h Laundry and toilet soap production line(Economy version)

LAF300TL-E
Grade: Economy, Capacity:Laundry Soap: 300kg/h,Toilet Soap: Max 200kg/h
Quantity:
Contact Now
add to cart

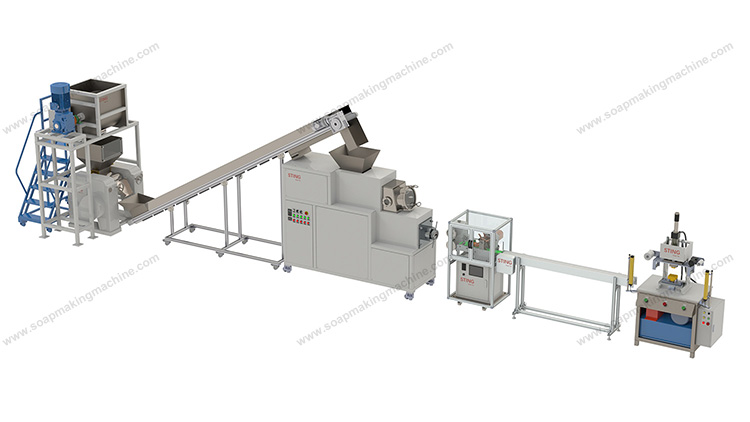

300kg/h full auto laundry and toilet soap production line

small soap making machine

Introduction

LAF300 Eseriesnamely Economy Version, are tailor-made for small-scale startups. With simplified equipment and affordable price, it features small but profitable investment, ideally suited for producing lightly colored soaps with basic formulations which do not need a lot of powder additives such as talcum powder, titanium dioxide, zeolite, etc. Therefore, it enables small businesses to enter the soap market quickly and open sales channels cost-effectively with high ROI (Return on Investment) and a short payback period.

Equipment Components

   No.
              Equipment List
       Model
  Qty
   1
Mixer
ST-M50
   1
   2
Three Roll Mill
ST-TRM150
   1
   3
Aluminum Profile Belt Conveyor (Inclined)
ST-CONV300
   1
   4
Duplex Plodder
ST-DP300
   1
   5
Auto CutterST-AC200
   1
   6
Belt Conveyor(Flat)ST-CONV100
   1

     7

Semi-Auto Hydraulic StamperST-S30     1

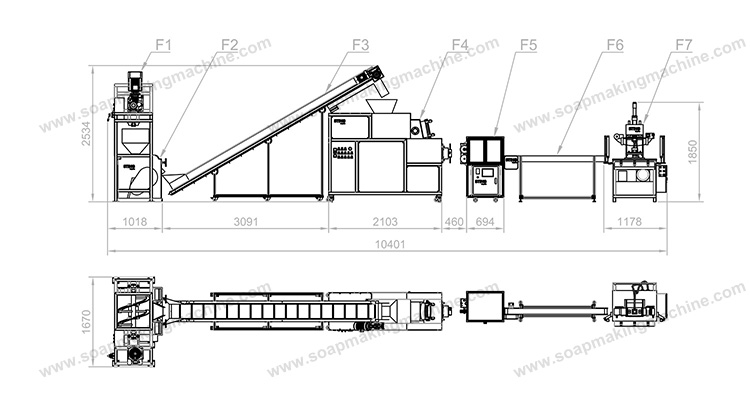

Equipment Layout

 small soap making machine


Technical Parameters


Applicable Raw Materials

Soap Noodles

Types of Finished Goods

Ordinary Laundry Soap & Toilet Soap with simple ingredients

Production Capacity

Laundry Soap: 300kg/h

Toilet Soap: Max 200kg/h

Determined by the size of soap and the fatty acid content of raw materials

Footprint

L10401*W1670*H2534mm

Total Line Weight

2460kg

Voltage

380V,50Hz,3 Phases

Energy Consumption

Total Power

26.3kw

Temp. of Cooling Water

5~15

Flow Rate of Cooling Water

4m³/h

Flow Rate of Compressed Air

7.2m3/h

Pressure of Compressed Air

0.8Mpa
