CP300 High Speed Intelligent Soap Cartoner(online model)

CP300
Quantity:
Contact Now
add to cart

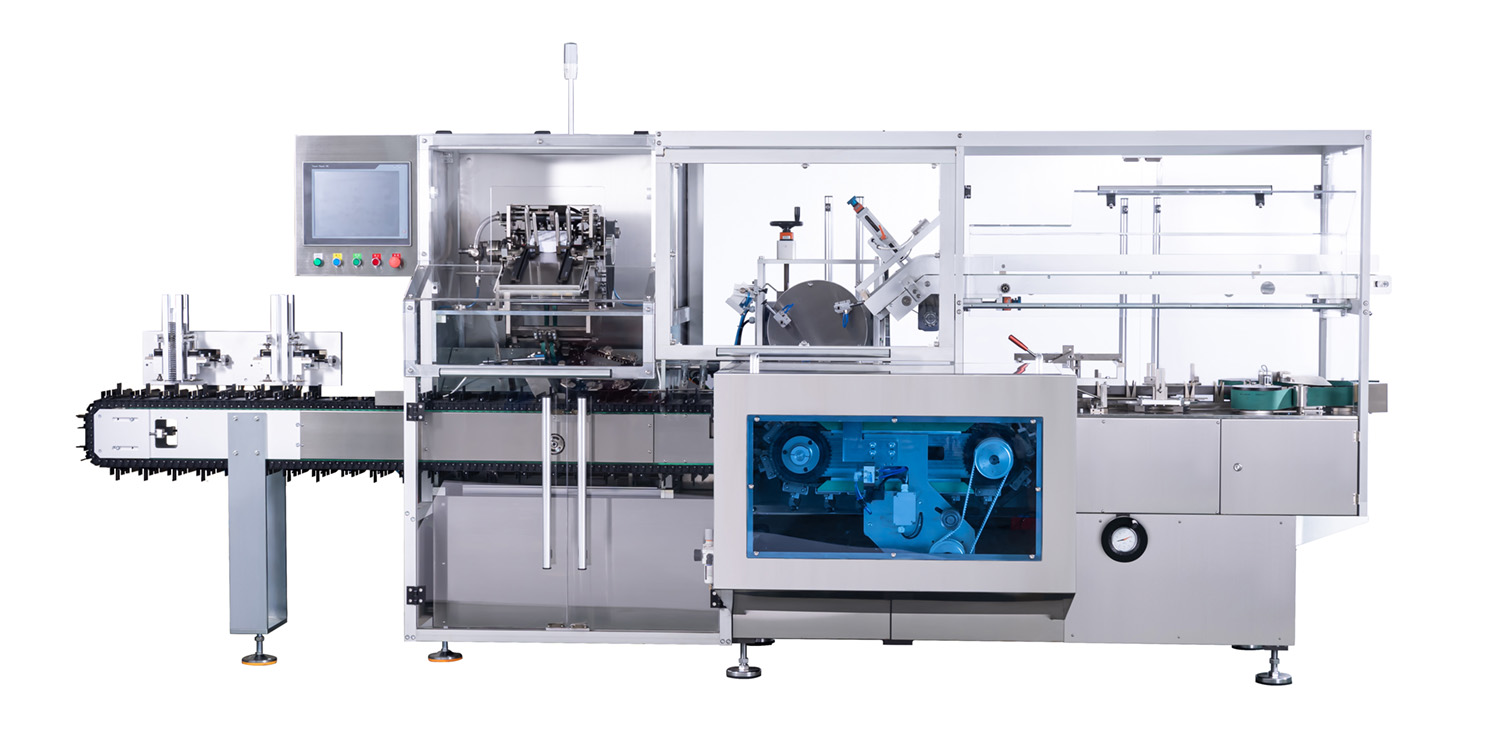

CP300 High Speed Intelligent Soap Cartoner(online model)
soap cartoning machine

Overview

The StingPack™ CP300 series machines utilize servo drive technology, with PLC-controlled servos and mechanical mechanisms controlling each operation. These machines complete a series of processes, including unloading, material transfer, paper folding, instruction sheet conveying, carton opening and forming, material loading, carton support and conveying, date stamping, carton sealing, and finished product delivery. They are suitable for connecting to corresponding online devices on both front-end and back-end equipment.

Machine Feature

1. Safety protection switches for each door

2. Servo motor with overload protection

3. Switching protection function between manual and automatic operation models

4. Low air pressure protection (machine stop)

5. 4 Alarm/machine stop when leaflet missing

6. Alarm/machine stop when carton missing

7. Alarm/machine stop when product not entering the carton properly

8. Alarm/machine stop when improper opening of the carton

9. Detection of products and leaflets inside the carton

10. Alarm/machine stop when carton open failure

11. Detection of leaflet picking up

12. Fluorescence detection of leaflet

13. Barcode detection of carton (optional)

14. Emergency stop switch

15. Verifying detection of carton rejection.

Details

Model

CP300

Speed

200-280 cartons/min

Heads of Opening Carton

3

Carton Requirements

250-350g/㎡

Leaflet Requirements

50g~70g/m², 60 g/m² is optimal

Power Supply

380 V 50 Hz 3 P

Total Power

8kw

Air Consumption

30 NL/min

Working Pressure

0.6mp

Dimension

4460×1950×1900mm

Weight

3000kg

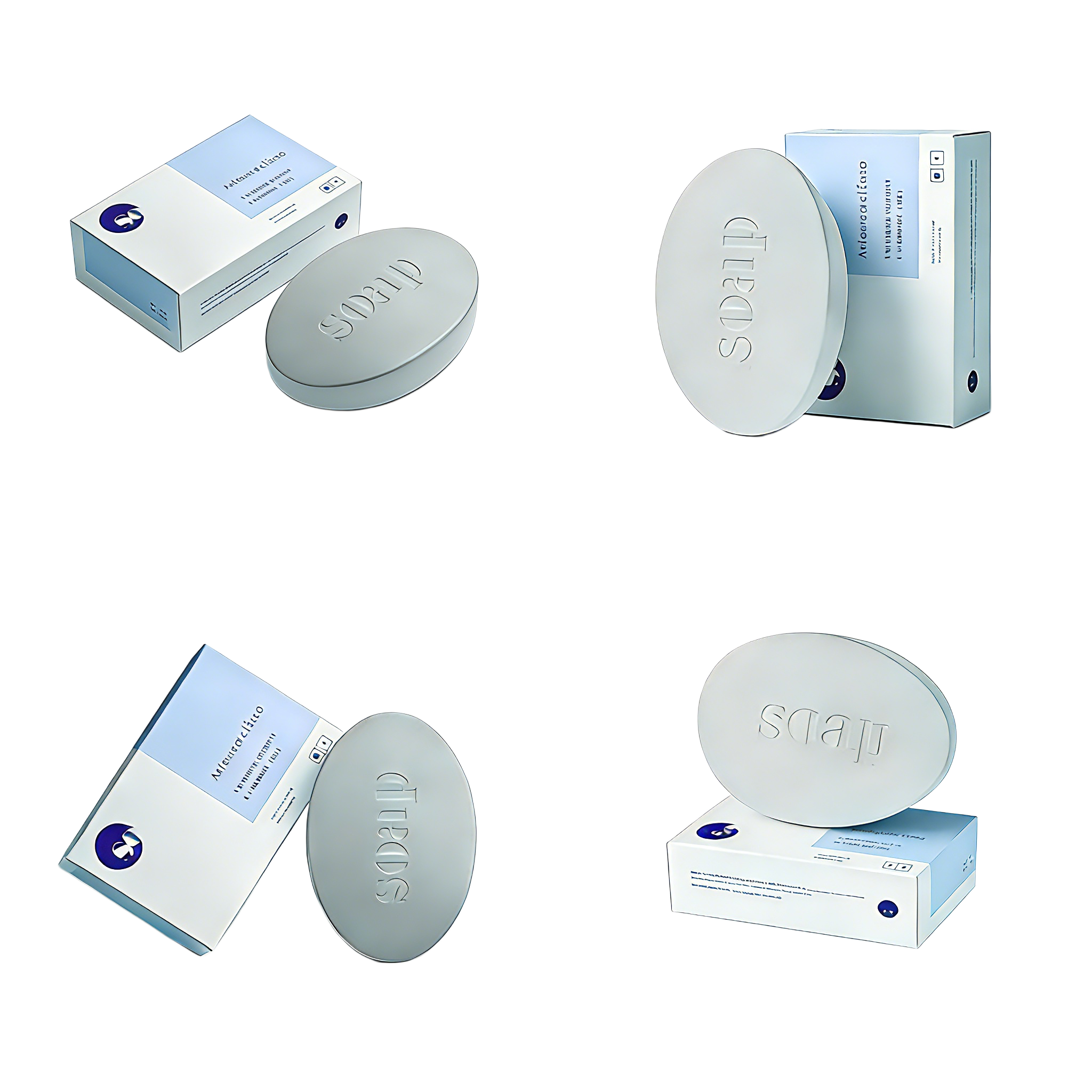

Samples
soap cartoning machine
