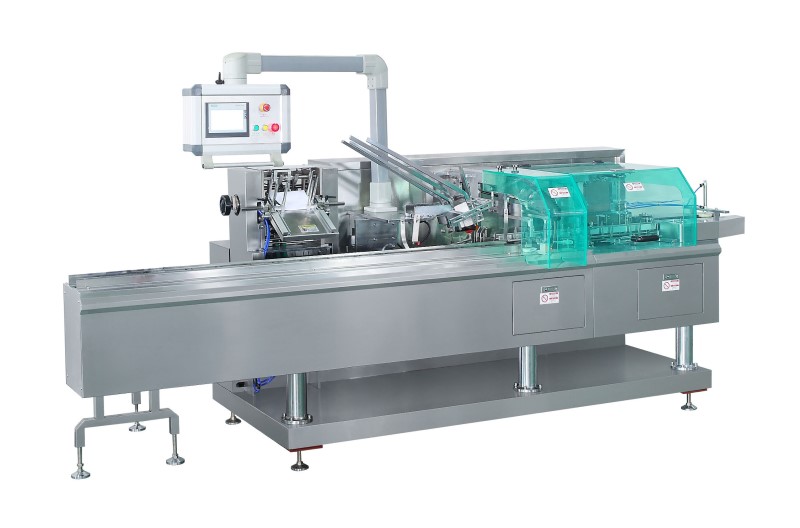

CP120 Auto Soap Cartoning Machine

CP120
Auto Soap Carton Packer
Quantity:
Contact Now
add to cart
CP120 Auto Soap Cartoning Machine
soap machinery

Overview of the soap machinery

This soap machinery is suitable for automatic feeding soap into carton(either for blister or bottle). On line soap unscramble and feeding, leaflet fold(1-4ffolds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.The material contact parts of the entire soap machinery are made of stainless steel or food grade materials.

Main feature of the soap machinery

1.International famous brand of electrical component such as PLC touch screen, frequency Inverters, etc.

2.Adopt human-machine operation system.

3.Automatically stop when machine is overload.

4.Automatically reject lacking of package product.

5.Automatically display trouble, Alarm and count finished products

Details of the soap machinery

Cartoning speed
45-60cartons/min(according to soap and carton size)
Carton
Quality requirement
250-350g/㎡(According to carton size)

Dimensions(L×W×H)
(70-200)mm*(30-80)mm*(15-60)mm

Leaflet
Quality requirement
60-70g/㎡
Unfold size range(L×W)
(80-250)mm * (90-170)mm
Folds
【1-4】folds
Compressd air
Working pressure
≥0.6mpa
Air consumption
120-160L/min
Voltage
380V  50HZ(If you need 220V, pls tell us in advance)
Main motor power
1.5kw
Dimensions(L×W×H)
3400㎜×1200㎜×1750㎜
Net weight
1250kg





Samples of the soap machinery
soap machinerysoap machinery
