bar soap making machine

300kg/h Full auto laundry soap production Line(Economy version)

LAF300L-E
Grade: Economy, Capacity:300kg/h
Quantity:
Contact Now
add to cart

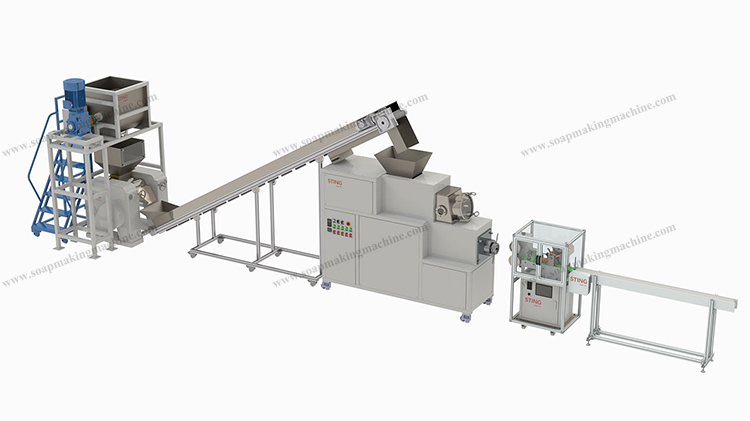

300kg/h full auto laundry soap production line

soap making machine

Introduction

LAF300 Eseriesnamely Economy Version, are tailor-made for small-scale startups. With simplified equipment and affordable price, it features small but profitable investment, ideally suited for producing lightly colored soaps with basic formulations which do not need a lot of powder additives such as talcum powder, titanium dioxide, zeolite, etc. Therefore, it enables small businesses to enter the soap market quickly and open sales channels cost-effectively with high ROI (Return on Investment) and a short payback period.

Equipment Components

   No.
              Equipment List
       Model
  Qty
   1
Mixer
ST-M50
   1
   2
Three Roll Mill
ST-TRM150
   1
   3
Aluminum Profile Belt Conveyor (Inclined)
ST-CONV300
   1
   4
Duplex Plodder
ST-DP300
   1
   5
Auto Cutter
ST-AC200
   1
   6
Belt Conveyor (Flat)
ST-CONV100
   1

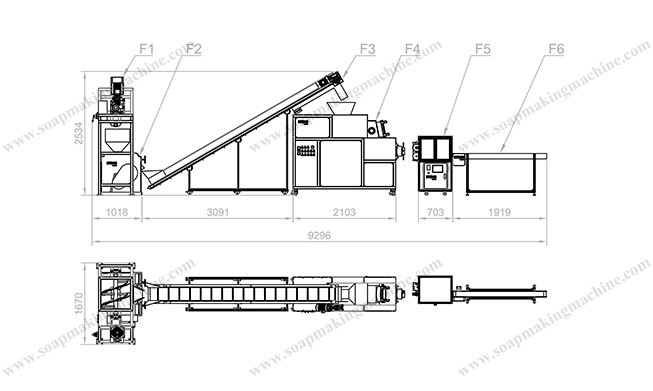

Equipment Layout

 soap making machine


Technical Parameters


Applicable Raw Materials

Soap Noodles

Types of Finished Goods

Ordinary Laundry Soap with simple ingredients

Production Capacity

300kg/h
Determined by the size of soap and the fatty acid content of raw materials

Footprint

L9296*W1670*H2534mm

Total Line Weight

2160kg

Voltage

380V,50Hz,3 Phases/220V,50Hz, Single Phase

Energy Consumption

Total Power

24.02kw

Temp. of Cooling Water

5~15

Flow Rate of Cooling Water

4m³/h

Flow Rate of Compressed Air

7.2m3/h

Pressure of Compressed Air

0.8Mpa
