400~800kg/h Laundry and toilet soap production line(Standard version)

LAP100-B
Grade: Standard, Capacity:400~800kg/h
Quantity:
Contact Now
add to cart
 400~800kg/h laundry and toilet soap production line

soap noodle making machine

Introduction

The LAP100-B model is a small standard soap-making machine that uses oil as raw material. It is not only fit for small-scale beginners using family workshops, but also suitable for producing high-quality crystal soaps such as glycerin soap and amino acid soap.

Equipment Components


   No.
              Equipment List
       Model
  Qty
   1
Homogenization MixerST-HM300
1
   2
Simplex RefinerST-SR3001
   3
Aluminum Profile Belt Conveyor (Inclined)ST-CONV3001
   4Three Roll MillST-TRM1501
   5Aluminum Profile Belt Conveyor (Inclined)ST-CONV3001
   6Simplex PlodderST-SP1001
   7Auto CutterST-AC2001
   8Semi-Auto Hydraulic StamperST-S301

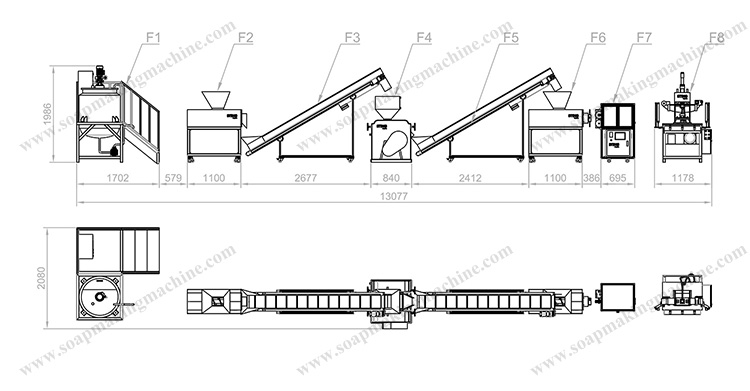

Equipment Layout

 soap noodle making machine


Technical Parameters


Applicable Raw Materials

Oil/Glycerin/Amino Acids

Types of Finished Goods

Laundry Soap & Toilet Soap

Production Capacity

400~800kg/h

Determined by the size of soap and the fatty acid content of raw materials

Footprint

L13077*W2080*H1986mm

Total Line Weight

2250kg

Voltage

380V,50Hz,3 Phases

Energy Consumption

Total Power

24.9kw
Temp. of Cooling Water5~15
Flow Rate of Cooling Water4m3/h

Flow Rate of Compressed Air

7.2m3/h

Pressure of Compressed Air0.8Mpa
